- Aerosol Index
Aerosols absorb and scatter incoming sunlight, which reduces visibility and increases the optical depth. Aerosols have an effect on human health, weather and the climate. Sources of aerosols include pollution from factories, smoke from fires, dust from dust storms, sea salts, and volcanic ash and smog. Aerosols compromise human health when inhaled by people with asthma or other respiratory illnesses. Aerosols also have an affect on the weather and climate by cooling or warming the earth, helping or preventing clouds from forming.
Satellite-derived Aerosol Index (AI) products are useful for identifying and tracking the long-range transport of volcanic ash from volcanic eruptions, smoke from wildfires or biomass burning events and dust from desert dust storms, even tracking over clouds and areas of snow and ice.
| Product: Instrument (Platform) and Download Link | Description | Browse imagery in Worldview |
| OMI (Aura) OMAERUV | The Ozone Monitoring Instrument (OMI) Aerosol Index (AI) indicates the presence of ultraviolet (UV)-absorbing particles in the air (aerosols) such as desert dust and soot particles in the atmosphere. The sensor resolution is 25 km, imagery resolution is 2 km, and the temporal resolution is daily. L2 Near UV Aerosol Optical Depth and Single Scattering Albedo Swath 13x24 km. | |
| OMPS (Suomi NPP) NMMIEAI-L2-NRT | The Ozone Mapping and Profiler Suite (OMPS) Aerosol Index (AI) indicates the presence of UV-absorbing particles in the air (aerosols) such as desert dust and soot particles in the atmosphere. The unitless range of the AI is from 0.00 to >=5.00, where 5.0 indicates heavy concentrations of aerosols that could reduce visibility or impact human health and this satisfies the needs of most users. However, the AI signal for pyrocumulonimbus (pyroCb) events, which are both dense and high in the atmosphere, can be much larger than 5.0. To provide better near real-time imagery for these high AI events, the pyroCb product has an upper AI limit of 50.0. The sensor resolution is 50 km, imagery resolution is 2 km, and the temporal resolution is daily. OMPS-NPP L2 NM Aerosol Index swath orbital NRT | |
- Aerosol Optical Depth
Aerosol Optical Depth (AOD) (or Aerosol Optical Thickness) indicates the level at which particles in the air (aerosols) prevent light from traveling through the atmosphere. Aerosols scatter and absorb incoming sunlight, which reduces visibility. From an observer on the ground, an AOD of less than 0.1 is “clean” - characteristic of clear blue sky, bright sun and maximum visibility. As AOD increases to 0.5, 1.0, and greater than 3.0, aerosols become so dense that sun is obscured. Sources of aerosols include pollution from factories, smoke from fires, dust from dust storms, sea salt, and volcanic ash and smog. Aerosols compromise human health when inhaled by people, particularly those with asthma or other respiratory illnesses. Aerosols also have an effect on the weather and climate by cooling or warming the earth, helping or preventing clouds from forming. Since aerosols are difficult to identify when they occur over different types of land surfaces and ocean surfaces, Worldview provides several different types of imagery layers to assist in the identification.
- Carbon Monoxide
Carbon Monoxide (CO) is a poisonous, odorless and colorless gas. CO is produced by incomplete combustion of fossil fuels and biomass burning. It is one of the longest-lived, naturally occurring atmospheric carbon compounds. CO is a trace gas produced by methane oxidation, fossil fuel consumption (emitted from factories and cars) and biomass burning (from forest fires and agricultural burning). These measurements are useful for analyzing the distribution, transport, sources and sinks of CO in the troposphere and can be used to observe how it interacts with land and ocean biospheres. CO hinders the atmosphere’s natural ability to rid itself of harmful pollutants.
- Corrected Reflectance Imagery
MODIS and VIIRS Corrected Reflectance imagery are available only as near real-time imagery. The imagery can be visualized in Worldview and Global Imagery Browse Services (GIBS).
Information on MODIS Corrected Reflectance Imagery layers including:
- Corrected Reflectance True Color (Bands 1-4-3),
- Corrected Reflectance (Bands 3-6-7)
- Corrected Reflectance (Bands 7-2-1)
Information on VIIRS Corrected Reflectance Imagery layers including:
- Corrected Reflectance True Color (Bands I1-M4-M3),
- Corrected Reflectance (Bands M3-I3-M11)
- Corrected Reflectance (Bands M11-I2-I1)

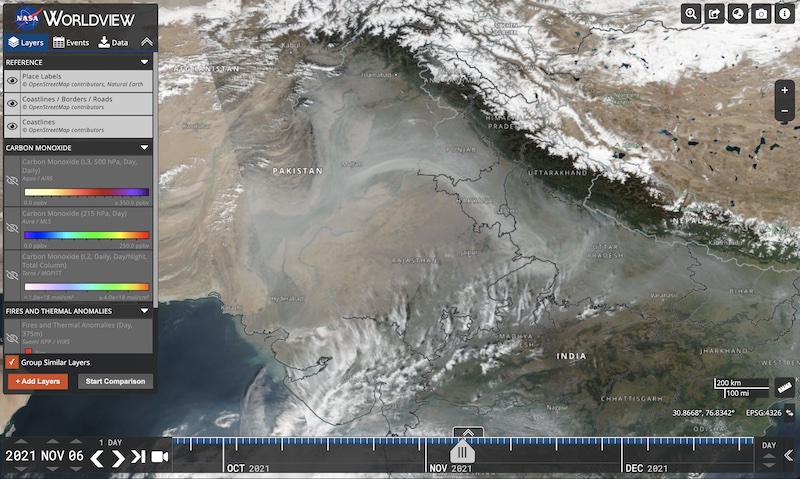

Browse Corrected Reflectance imagery in Worldview
For more on the difference between Corrected Reflectance and Surface Reflectance Imagery
- Dust
| Product: Instrument (Platform) and Download Link | Description | Browse imagery in Worldview |
AIRS (Aqua)
AIRIBQAP_NRT.005 | The AIRS Dust Score science parameter is a parameter of the AIRS Level 1B Infrared quality assurance subset (AIRIBQAP_NRT). The AIRS Dust Score (Ocean, Day | Night) layer indicates the level of atmospheric aerosols in the Earth’s atmosphere over the ocean. The numerical scale is a qualitative representation of the presence of dust in the atmosphere, an indication of where large dust storms may form and the areas that may be affected. Pixels where the dust score is less than 360 are not shown in Worldview/GIBS. The imagery resolution is 2 km, sensor resolution is 45 km and the temporal resolution is daily. L1B IR quality assurance subset | |
- Fire
The VIIRS and MODIS Fire and Thermal Anomalies layer shows active fire detections and thermal anomalies, such as volcanoes, and gas flares. Fires can be set naturally, such as by lightning, or by humans, whether intentionally or accidentally. Fire is often thought of as a menace and detriment to life, but in some ecosystems it is necessary to maintain the equilibrium, for example, some plants only release seeds under high temperatures that can only be achieved by fire, fires can also clear undergrowth and brush to help restore forests to good health, humans use fire in slash and burn agriculture, to clear away last year’s crop stubble and provide nutrients for the soil and to clear areas for pasture. The fire layer is useful for studying the spatial and temporal distribution of fire, to locate persistent hot spots such as volcanoes and gas flares, to locate the source of air pollution from smoke that may have adverse human health impacts.
- Nitric Acid
Nitric acid (HNO3) is a very water soluble, acidic gas.
In the atmosphere it is formed by the conversion of nitrogen monoxide into nitrogen dioxide, and ultimately into nitric acid. It readily reacts with atmospheric water to produce acidic precipitation. Nitric acid also reacts with gaseous ammonia to form particulate or aerosol nitrate, which in turn is removed by wet and dry deposition of the particles. In the clean background troposphere, its removal in precipitation acts as a sink for odd hydrogen and nitrogen compounds and limits the formation of ozone.
| Product: Instrument (Platform) and Download Link | Description | Browse imagery in Worldview |
MLS (Aura)
ML2HNO3_NRT.005 | The MLS Nitric Acid (HNO3) Mixing Ratio at 46hPa layer indicates nitric acid levels at the vertical atmospheric pressure level of 46hPa, and is measured in parts per billion by volume (ppbv). It is derived from the MLS Nitric Acid (ML2HNO3_NRT) MLS/Aura NRT L2 HNO3 Mixing Ratio | Nitric Acid (46 hPa, Day/Night) |
- Nitrous Oxide
Nitrous oxide (N2O) is produced almost entirely at the Earth's surface, about 70% from biological processes (natural decay process of land and ocean) and the rest from human activities (e.g. agricultural fertilization and fossil-fuel burning). Since the 1950's an increase in N2O of about 0.3%/year has been seen in this important greenhouse gas.
- Ozone
Ozone (O3) plays important roles in atmospheric chemistry and radiative balance throughout the atmosphere. Chemically, it is a powerful oxidant. Radiatively, it is an important greenhouse gas, particularly at 10 to 15 km. At the Earth's surface, it is a toxic component of air pollution with significant public health and agricultural impacts. The stratospheric ozone layer from 15 to 50 km absorbs UV radiation, protecting life at the surface and, through heating by the absorbed radiation, largely determines the temperature structure of the middle atmosphere.
| Product: Instrument (Platform) and Download Link | Description | Browse imagery in Worldview |
MLS (Aura)
ML2O3_NRT.005 | The MLS Ozone (O3) Mixing Ratio 46hPa (hectopascals) layer is derived from the MLS Ozone product (ML2O3_NRT) available from the Microwave Limb Sounder (MLS) instrument on the Aura satellite. The product indicates ozone levels at the vertical atmospheric pressure level of 46hPa, and is measured in parts per billion by volume (ppbv).The sensor resolution is 5 km, imagery resolution is 2 km, and the temporal resolution is twice daily (day and night). MLS/Aura NRT L2 O3 Mixing Ratio | Ozone (46 hPa, Day/Night) |
OMPS (Suomi NPP)
NMTO3NRT | OMPS NRT products complement the ozone NRT data already available from OMI.
OMPS-Suomi NPP L2 NM Ozone (O3) Total Column swath orbital NRT | Ozone |
- Sulfur Dioxide
Sulfur Dioxide (SO2), is a colorless gas with a pungent, suffocating odor that is water soluble to produce the acid, H2SO3. SO2 is one of the US Environmental Protection Agency's (EPA) six major regulated criteria pollutants (Tropospheric Ozone [O3], Nitrogen dioxide [NO2], Sulfur dioxide, Lead, PM2.5 and PM10 particulates). It irritates the eyes, nose, and lungs. High concentrations of SO2 can result in temporary breathing impairment. It is produced by combustion of coal, fuel oil, and gasoline, since these fuels contain sulfur in the combustion, and in the oxidation of naturally occurring sulfur gases. It is a precursor to sulfuric acid, which is a major constituent of acid rain. SO2 is injected into the stratosphere by volcanic eruptions. SO2 also is a major precursor to PM2.5 (Particulate Matter up to 2.5 micrometers in size), which is a significant health concern, and a main contributor to poor visibility. These data are used by the Volcanic Ash Advisory Centers in advisories to airlines for operational decisions.
| Product: Instrument (Platform) and Download Link | Description | Browse imagery in Worldview |
AIRS (Aqua)
AIRIBRAD_NRT.005 | The AIRS Prata SO2 Index Day/Night layer indicates Sulfur Dioxide column amounts in the atmosphere, measured in Dobson Units (DU); it is science parameter is a derived parameter from the Level 1B Near-Real Time Infrared (IR) geolocated and calibrated radiances, (AIRIBRAD_NRT). The imagery resolution is 2 km and sensor resolution is 45 km. The temporal resolution is daily. L1B IR geolocated radiances | Sulfur Dioxide (Day/Night Prata Algorithm) |
MLS (Aura)
ML2SO2_NRT.005
| The MLS Sulfur Dioxide (SO2) Mixing Ratio layer at 147hPa (hectopascals) indicates sulfur dioxide levels at the vertical atmospheric pressure level of 147hPa, and is measured in parts per billion by volume (ppbv). The sensor resolution is 5 km, imagery resolution is 2 km and the temporal resolution is twice daily (day and night). MLS/Aura NRT L2 SO2 Mixing Ratio | Sulfur Dioxide (147 hPa, Day/Night) |
OMI (Aura)
OMSO2NRTb | The OMI Sulfur Dioxide (SO2) Lower Troposphere layer indicates the column density of sulfur dioxide in the lower troposphere (corresponding to 2.5 km center of mass altitude (CMA)) and is measured in Dobson Units (DU). Sulfur Dioxide and Aerosol Index products are used to monitor volcanic clouds and detect pre-eruptive volcanic degassing globally. L2 Sulfur Dioxide (SO2) Total Column Swath 13x24 km SO2 Planetary Boundary Layer Measures the tropospheric boundary-layer component of the total SO2 column measured in Dobson Units (DU). SO2 Lower Troposphere Indicates the column density of SO2 in the lower troposphere (corresponding to 2.5 km center of mass altitude (CMA)). SO2 Middle Troposphere Indicates the column density of sulfur dioxide in the middle troposphere (corresponding to 7.5 km center of mass altitude (CMA)). SO2 Upper Troposphere and Stratosphere layer Indicates the column density of sulfur dioxide in the upper troposphere and stratosphere (corresponding to 17 km center of mass altitude (CMA)) and is measured in Dobson Units (DU). | |
OMPS (Suomi NPP) NMSO2-PCA-L2-NRT | OMPS NRT products complement the sulfur dioxide NRT data already available from OMI
OMPS/Suomi NPP PCA SO2 Total Column 1-Orbit L2 Swath 50x50km NRT | |
