New Imagery and Functionality Available in NASA Worldview

New VIIRS imagery from NOAA-20 along with new ways to evaluate and select imagery layers make NASA Worldview more useful than ever.

Josh Blumenfeld, NASA EOSDIS Science Writer

Tropical Depression Cristobal appears as a large, white, counterclockwise rotating storm over the Southern U.S.

This NOAA-20/VIIRS Corrected Reflectance (True Color) image of Tropical Depression Cristobal moving into the southern U.S. was acquired on June 8, 2020. Click on image for larger view. NASA Worldview image.

New imagery from the NOAA-20 satellite, easier ways to filter and discover available imagery, and the ability to have a distraction-free view of imagery without menus, buttons, or timelines are the most recent enhancements to the NASA Worldview interactive data visualization application. These new additions complement features that went live earlier in 2020, including enhancements to the Layer Picker and new ways to work with layers that include classification types (such as the Land Cover Type layer).

A key addition is seven new Visible Infrared Imaging Radiometer Suite (VIIRS) imagery layers from the NOAA-20 satellite: three Corrected Reflectance daily base map layers (True Color, false color with Bands M3-I3-M11, and false color with Bands M11-I2-I1), two Brightness Temperature (Day and Night) layers, and two Fire and Thermal Anomalies (Day and Night) layers.

The addition of VIIRS imagery from NOAA-20 provides not just another source for Worldview imagery, but also another time for which imagery is acquired – NOAA-20 crosses the equator 50 minutes prior to the joint NASA/NOAA Suomi National Polar-orbiting Partnership (Suomi NPP) satellite. This means that Worldview users now have access to four sets of Corrected Reflectance and Fires and Thermal Anomalies (Day and Night) layers: Moderate Resolution Imaging Spectroradiometer (MODIS) imagery from NASA’s Terra and Aqua satellites and VIIRS imagery from the Suomi NPP and NOAA-20 satellites. Having similar imagery from four separate satellites ensures continuity of data from older spacecraft (such as Terra and Aqua) and newer spacecraft (such as Suomi NPP and NOAA-20), which is critical when older missions retire.

Panel of four true color images of Cuba showing blue water surrounding the brown island; white clouds increase with images acquired later in the day.

Four satellites, four Corrected Reflectance (True Color) views of Cuba acquired on May 4, 2020. Clockwise from upper left: Terra/MODIS passes over the equator at approximately 10:30 am and 10:30 pm, local time; NOAA-20/VIIRS crosses the equator at approximately 12:20 pm and 12:20 am, local time; Suomi NPP/VIIRS crosses the equator at approximately 1:30 pm and 1:30 am, local time; Aqua/MODIS crosses the equator at approximately 1:30 pm and 1:30 am, local time. Interactively explore the Terra/MODIS image at https://go.nasa.gov/2NkKHBd. NASA Worldview image.

Along with new imagery, new Worldview features make it easier to work with and view imagery.

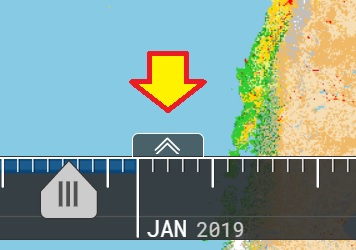

Small square image showing yellow arrow outlined in red pointing downward toward two upward-pointing gray chevrons.

The Timeline Availability Panel enables users to easily view dates that have imagery available for the data product they wish to explore. This has become increasingly important as more imagery products have been added to the system from different missions, many of which have different time ranges for their availability. To turn the Timeline Availability Panel on or off, simply click on the two upward pointing chevrons above the timeline (image at right). Once the panel is open, colored bars indicate date ranges for all imagery layers selected, including imagery layers that are selected, but not active (image below).

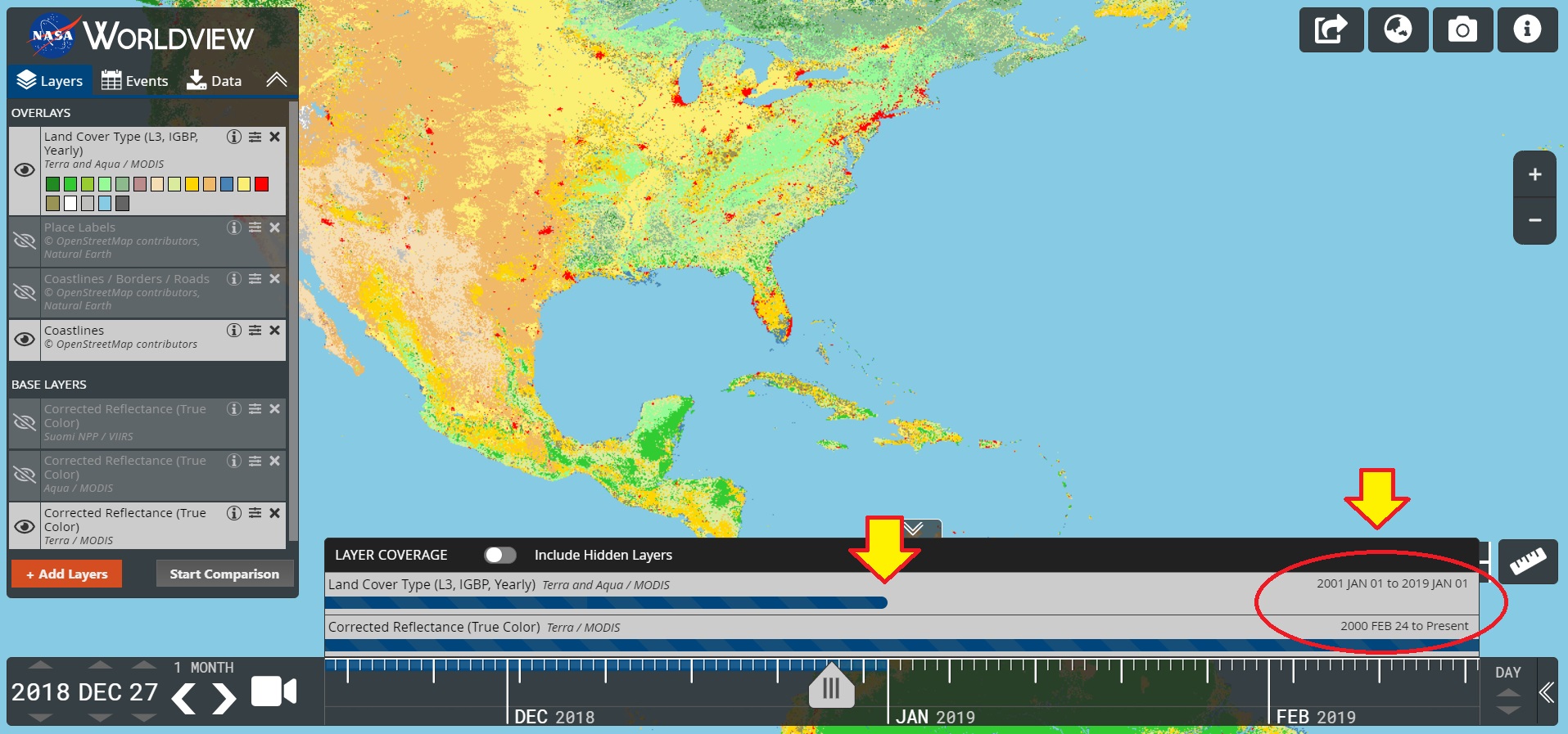

Screenshot of full Worldview panel showing open timeline availability panel. Yellow arrow outlined in red in lower center of screen points downward to blue timeline bars; yellow arrow outlined in red on right side points downward to red circle around text indicating dates of available imagery.

Open Timeline Availability Panel showing available imagery for the Terra and Aqua MODIS Land Cover Type data product. Lower gray bar with blue line indicates dates of available Terra/MODIS Corrected Reflectance (True Color) imagery; text in right side of bar (inside circle under right arrow) indicates this imagery is available from February 24, 2000 to present. Upper gray bar with blue line indicates that Land Cover Type imagery is not available past January 1, 2019 (center arrow); text in right side of bar (inside circle) indicates this imagery is available from January 1, 2001 to January 1, 2019. NASA Worldview image.

The NASA Worldview team also enhanced the functionality of the Layer Picker through the addition of a faceted search option. This feature enables users to more efficiently search through and select more than 900 imagery layers by specifically targeting the imagery attributes desired (e.g., source, period, day or night, etc.).

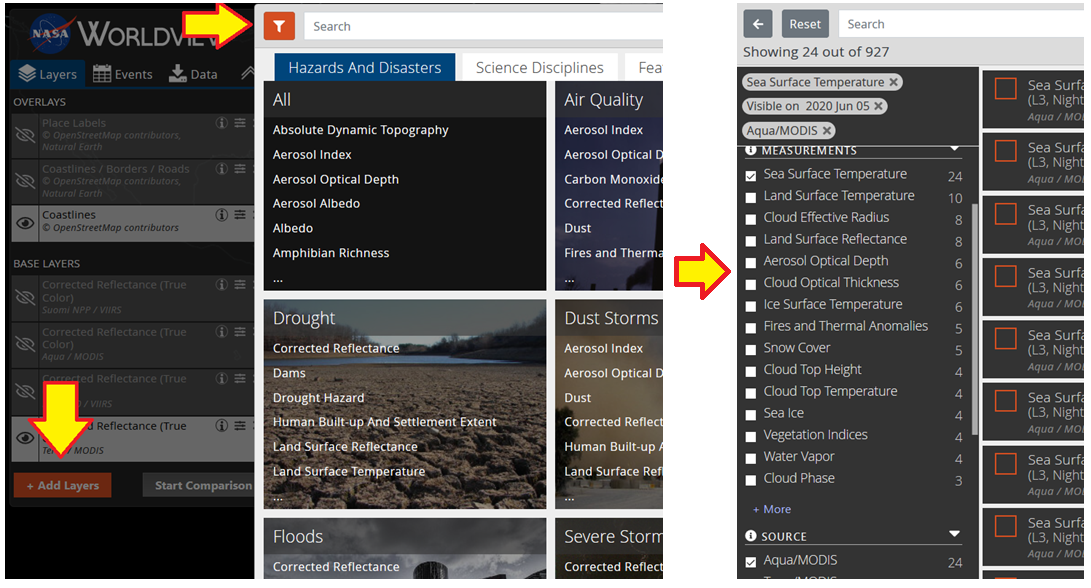

Side-by-side images showing how to activate faceted search panel (left image) with yellow arrows outlined in red and open faceted search panel (right image). Yellow arrow outlined in red points from left image to right image.

After clicking on the orange “+ Add Layers” button (left image, lower arrow), the faceted search panel can be accessed by either typing in the Search bar or clicking on the orange filter icon (left image, upper arrow). Use the faceted search to narrow available imagery by selecting criteria in several facets (right image). Click on image for larger view. NASA Worldview image.

To enter the imagery layer faceted search panel, simply click on the orange “+ Add Layers” button at the bottom of the layer box on the left side of the main window to open the imagery layer category panel. The faceted search panel appears by either typing in the search bar or clicking on the “filter” icon in the upper left corner of the panel (image at right).

Use the faceted search panel to narrow an imagery search using several filters. Facet categories include:

  • Coverage: Filter layers that are available on the current date being viewed or for static layers that are always available regardless of date, such as the Blue Marble composite image or the place names layer.
  • Category: Filter layers using the same categories shown in the Layer Picker panel under the three tabs at the top of the panel (Hazards and Disasters, Science Disciplines, Featured).
  • Measurements: Filter by the type of measurement shown in the imagery (precipitation rate, water vapor, aerosol optical depth, etc.).
  • Source: Filter by specific satellite or sensor/instrument.
  • Period: Filter imagery by temporal resolution (day, month, year, etc.).
  • Day/Night: Filter imagery by whether the layer shows daytime or nighttime imagery.

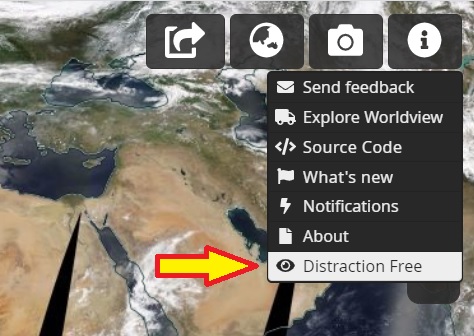

Small square image with a yellow arrow outlined in red pointing to the words "Distraction Free" at the bottom of a drop-down list.

Finally, and as an added bonus, the Worldview team created a new Distraction Free Mode that removes menus, buttons, timelines, and other elements that overlay imagery. Entering Distraction Free Mode is easy – simply click on the information box (“i”) in the upper right corner of Worldview and select Distraction Free at the bottom of the drop-down menu.

Here what the Worldview window looks like with Distraction Free off (left image) and on (right image):

Side-by-Side images showing the difference between having distraction free mode on (left image) and off (right image). Right image shows "clean" Worldview base map without any overlays.

With Distraction Free Mode on (right image), it’s easy to concentrate on just the imagery. NASA Worldview images.

To exit Distraction Free Mode, simply go back to the information button in the upper right corner and turn the feature off.

Using Worldview has never been easier. Check out Worldview today, and see how new imagery and features make it even easier to interactively explore our dynamic planet.

Published June 23, 2020
